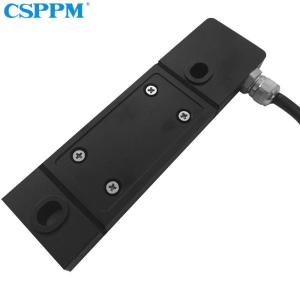

Stainless Steel Construction Strain Transducers For Heavy Duty Industrial

Name: Stainless Steel Construction Strain Transducers For Heavy Duty Industrial
Brand: CSPPM
Price: 1 USD

Wholesale Stainless Steel Construction Strain Transducers For Heavy Duty Industrial from china suppliers

Brand Name : CSPPM

Model Number : PPM-YB-3000

Certification : CE

Place of Origin : China

MOQ : 1 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Measuring type : Micro strain, linear deformation

Measuring range : ±3000με

Power supply : 5VDC

Output signal : mv

Nonlinearity : ≦0.015%FS

Repeatability : ≦0.02%FS

Accuracy : Accuracy error：≤2%FS

Long-term stability : ≦0.5%FS/Year

Operation temp : -25℃—85℃

Zero temp. drift : ≦0.3%FS

Contact Now

Strain Transducers

Product Introduction:
PPM-YB-3000 was designed for measuring of dynamic or static surface strain on stiff steel constructures. The Strain transducer is screwed on the component making a positive connection between the extensometer and the object. Under mechanical stress on the target construction caused strains and sprains. The sensor is simply srewed onto the component and convert the deformation on the fix platen, which is proportional to the length change, into an electrical output signal.
The strain transmitter have stainless steel construction and meets the requirements of protection class IP65. The strain transducer has been designed for applications in which there is a need to measure the deformation due to external forces acting on an existing component. Due to the small space requirements and the easy installation, PPM-YB-3000 are ideal for retrofitting a force measurement and load monitoring

Typical Application:

Stainless steel construction
Capacity: ±3000με
Design: the strain gauge application is potted
Very flat construction
Particularly robust for heavy duty industrial use

Technical Parameters :

Measuring type	Micro strain, linear deformation
Measuring range	±3000με
Power supply	5VDC
Output signal	mv
Nonlinearity	≦0.015%FS
Repeatability	≦0.02%FS
Accuracy	Accuracy error:≤2%FS
Long-term stability	≦0.5%FS/Year
Operation temp	-25℃—85℃
Zero temp. drift	≦0.3%FS
FS temp. drift	≦0.3%FS
Response time	<3ms
Output impedance	1KΩ
Insulation resistance	>1000MΩ/100VDC
Overpressure	120%FS
Damage pressure	>300FS
Materials	7075Aluminium Alloy
Ingress protection	IP65
Electrical connections	Cable connection

Definition of wiring:

Dimensions in mm :
