CSPPM PPM-T232E 1200MPa High Pressure Pressure Transmitter

Brand Name : CSPPM

Model Number : PPM-T232E

Certification : CE

Place of Origin : China

MOQ : 1 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Measured medium : water, hydraulic oil, etc.

Pressure type : sealed reference pressure, vent gauge

Pressure Range : 0 ~ 250MPa, 300MPa, 400MPa, 450MPa, 500MPa,1200MPa

Power supply : 10-32VDC

Output signal : 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC

Mounting Thread : M20 × 1.5 tapered spherical surface, M22 × 1.5 tapered spherical surface, 3 / 4-16UNF with 58 degree cone

Electrical interface : Hirschmann, aerial plug, direct outgoing

Accuracy : 0.5% FS, 0.25% FS

Long-term stability : ≤ ± 0.5% FS / year

Working medium temperature : -35 ~ + 85 ℃

Contact Now

0 ~ 1200MPa PPM-T232E Isostatic Press Water Jet Equipment Pressure Transmitter

Product Introduction:

PPM-T232E series ultra-high pressure pressure transmitter adopts rare metal alloy material, after special process treatment, integrated design, all stainless steel welded package housing, laser resistance temperature compensation, equipped with high-performance digital processing circuit, high and low temperature aging at the factory And long-term fatigue test, long-term stability is good, long working life, maintain safe and stable work in the ultra-high pressure range.

Applications :

Isostatic Press Water Jet Equipment , Tube Expander High Pressure , Food Sterilization Equipment Homogenizer

Technical Parameters :

Measured medium : water, hydraulic oil, etc.
Pressure type: sealed reference pressure, vent gauge
Pressure Range : 0 ~ 250MPa, 300MPa, 400MPa, 450MPa, 500MPa, 600MPa, 800MPa, 1000MPa, 1200MPa
Power supply : 10-32VDC
Output signal : 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC
Mounting Thread : M20 × 1.5 tapered spherical surface, M22 × 1.5 tapered spherical surface, 3 / 4-16UNF with 58 degree cone
Electrical interface: Hirschmann, aerial plug, direct outgoing
Accuracy: 0.5% FS, 0.25% FS
Long-term stability : ≤ ± 0.5% FS / year
Working medium temperature : -35 ~ + 85 ℃
Working environment temperature : -30 ~ + 75 ℃

Definition of wiring:

Hirschmann Connector
2-wire system 3-wire system
CSPPM PPM-T232E 1200MPa High Pressure Pressure Transmitter Power supply 1 1
Negative power 2 2
Signal positive 一 3
Direct outgoing
2-wire system 3-wire system
CSPPM PPM-T232E 1200MPa High Pressure Pressure Transmitter Power supply red red
Negative power black black
Signal positive 一 green

Aviation connector
2-wire system 3-wire system
CSPPM PPM-T232E 1200MPa High Pressure Pressure Transmitter Power supply 1 1
Negative power 2 2
Signal positive 一 3

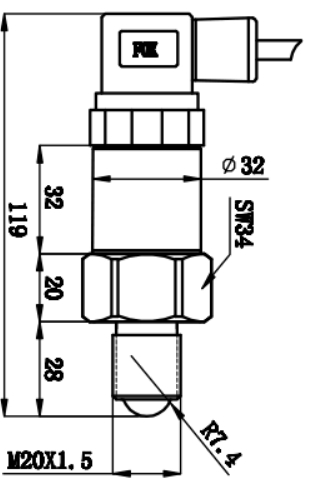

Dimensions in mm :

CSPPM PPM-T232E 1200MPa High Pressure Pressure Transmitter
